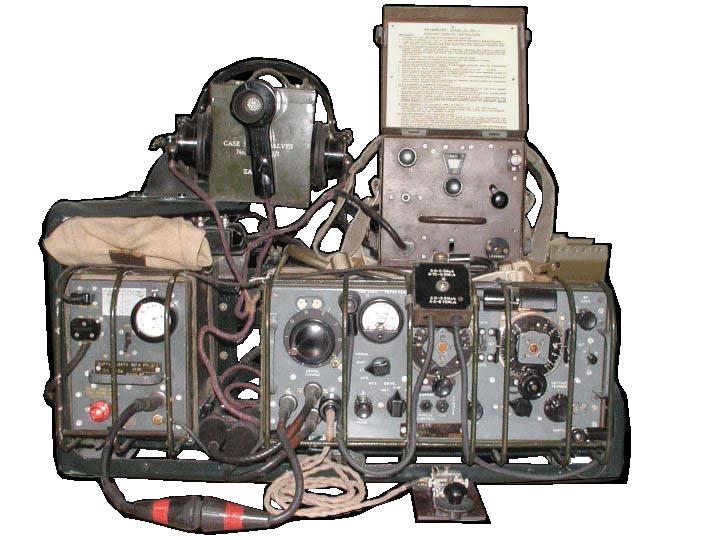

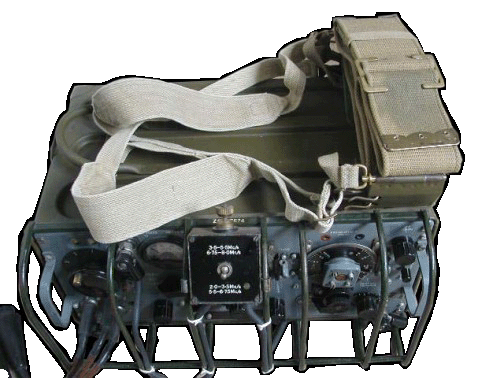

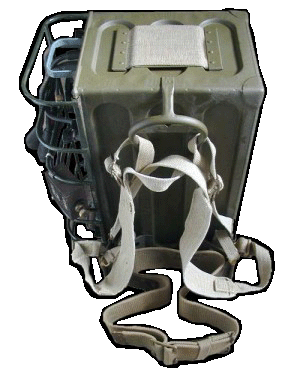

WWII Wireless Set No. 22,
ZA 11694, PSU No. 4 Mk. I1 T, ZA10478. Dated 1943 and is fully working.
|
||
 |
||
 |
 |
|
|
|
||

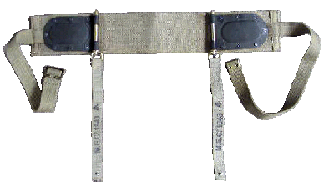

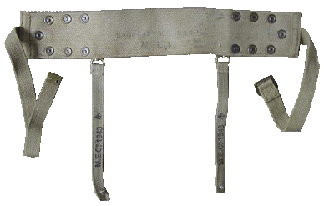

| Late WWII webbing belt for WS22 | ||
 |
 |
 |
| Showing the back of the belt, how the metal work is riveted to the belt itself. | Image of the date is not too clear, but it reads; |
|
 |
BAGCRAFT LTD 1944
ZA 21xx4 The ZA number is not clear enough to fully make out, but should be "ZA21524" |
|
|
|
||
| Morse Key & Plug Assy. No 2B ZA4500 | ||
 |
 |
 |
|
click image for larger photo
|

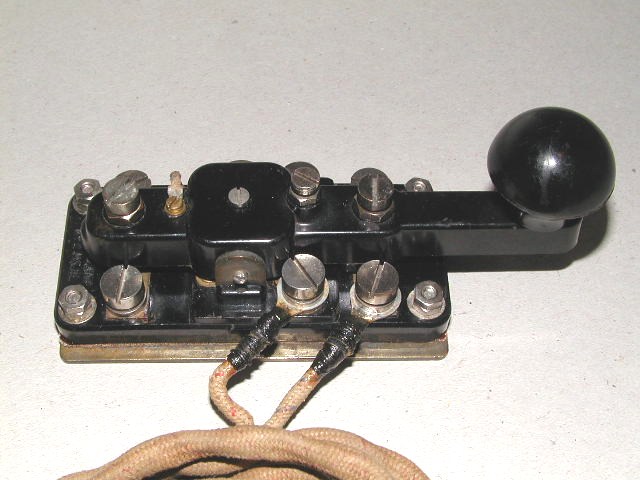

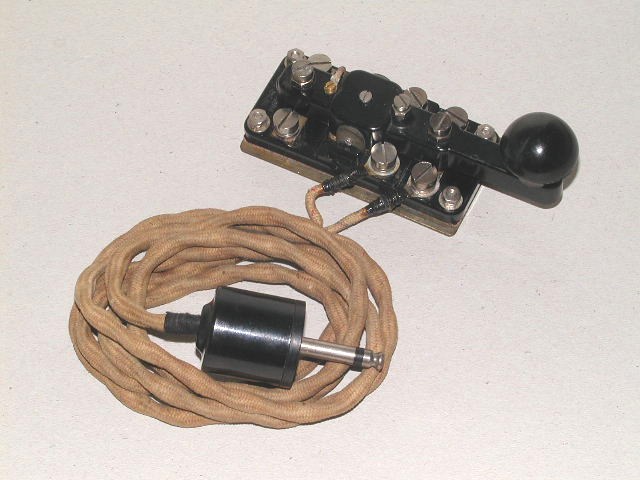

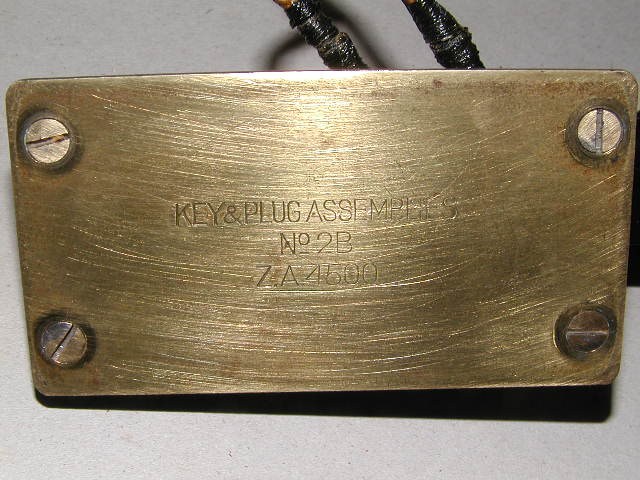

Morse Key & Plug Assy. No 2B ZA4500 on brass
plate, utilising a WT8AMP No2 Mk II
|
click image for larger photo
|
 |
 |
 |
|
click image for larger photo
|

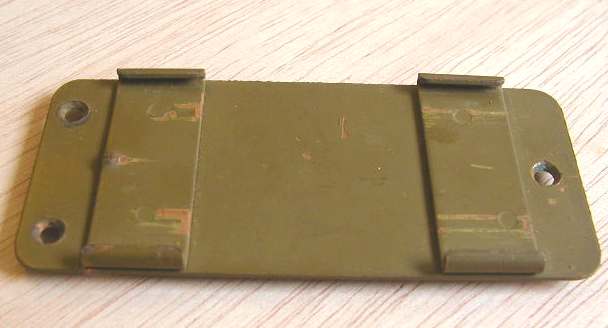

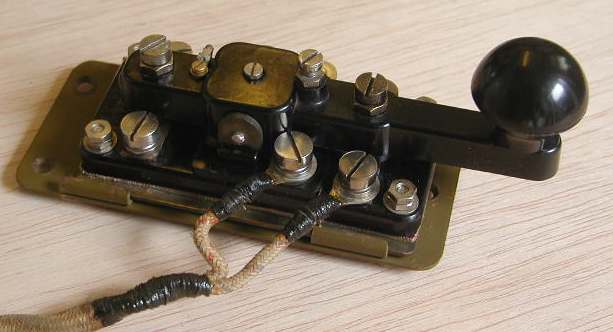

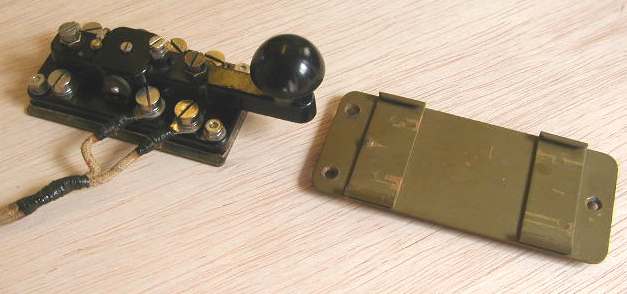

Morse Key & Plug Assy. No 2B ZA4500 and bench
mount that the key assy attaches to.
|
click image for larger photo
|
|
|
||
 |
 |
 |
|
Headgear Assembly No.10 ZA.21514
|
Operators Lamp No.6a
|
Headgear Assembly No.1 ZA.2904
|
|
Chassis Views
|
||||
|
 |
 |
||
|
WS22 inside top
|
PSU No.4 Mk1*
|
WS22 bottom, screen removed
|
||
 |
||||
|

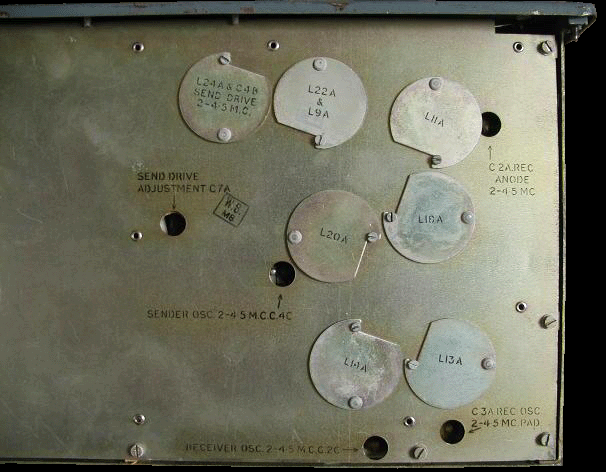

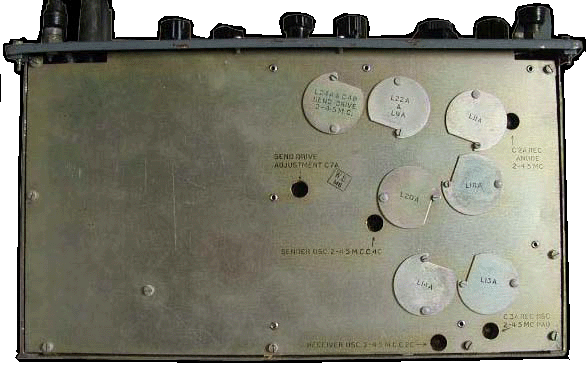

Underside of WS22 chassis with the base plate in
place
Click image for larger view of text. |
||||
 |
|
 |
||
 |
|
 |
||
|
|
||||
|

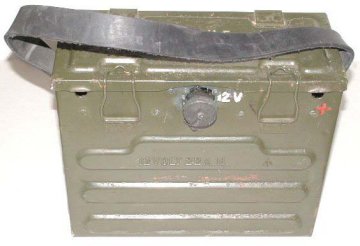

12 volt, 22Ah Lead Acid battery
|
||||
 |
12 volt, 22Ah Lead Acid battery Niphan power socket can be seen This battery has never been filled |
 |
||||||||||||||||||
|
|
||||||||||||||||||||
 |

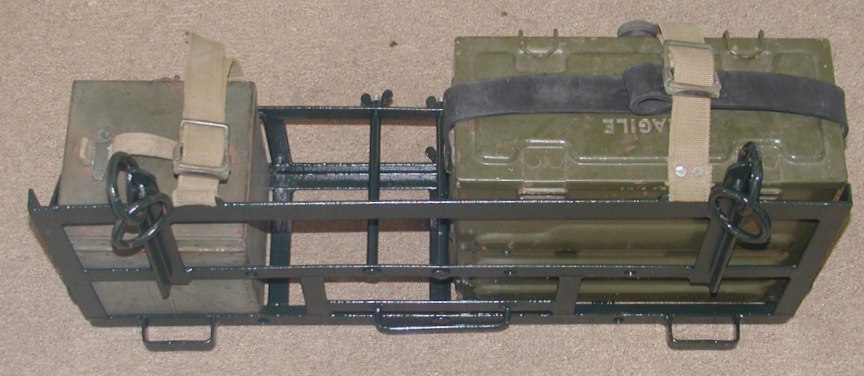

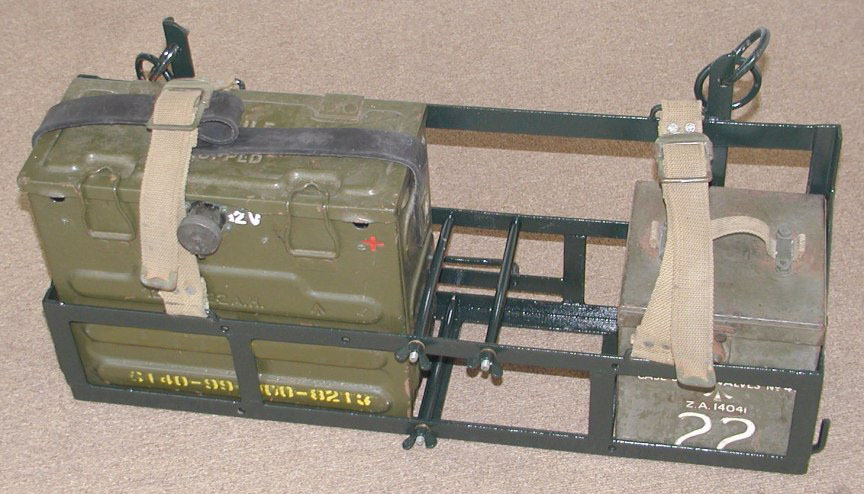

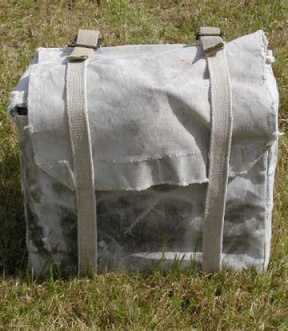

Front view showing the 22 Ah battery
and the WS22 spave valve kit in place |
 |
||||||||||||||||||
 |
Back view showing loops that attach the
carrier to the saddle on the animal, the animal normally being a Mule. |
Click on pictures of carrier
for larger images.
|
||||||||||||||||||
|
|
||||||||||||||||||||
|
||||||||||||||||||||
|

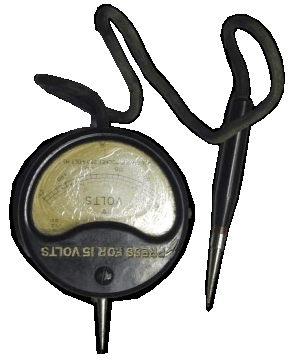

Pocket Volt Meter 250v No.2 ZA
7372
|
||||||||||||||||||||
|
Meter storage bag dated 1944 |
|
Meter storage bag dated 1944 |
||||||||||||||||||
 |
||||||||||||||||||||
|
|
||||||||||||||||||||
|
5 point audio extension lead
|
Spare Valves Kit, No. 4G
Mk 1/1 ZA. 26925
|
X55 Aerial capacitor
|
|
 |
 |
 |
 |
|
5 point audio extension lead, used to extend the length of the lead to headphones or the power cable between the PSU and Wireless Set. |
WWII Wireless Set No. 22 Spare Valves Kit, No. 4G Mk 1/1 ZA. 26925. |
X55 Aerial capacitor, used to protect the operator
from high voltage shocks should the radio aerial come into contact with
over head wires.
|
|
|

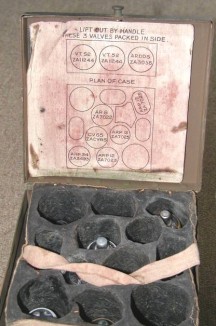

Spare Valves Kit, No. 4C
ZA. 14041
|
|||
 |
 |
 |
 |
|
WWII Wireless Set No. 22 Spare Valves Kit. |
Rubber insert that holds and protects the valves.
|
||
|
|
|||
|
Aerial Base No.11 & ground
spike
|
||||
 |
|
 |
||
|
Aerial Base No.11 (ZA11009) & ground spike(ZA11010),
assembled ready for use.
|
|
Aerial Base No.11 (ZA11009) & ground spike(ZA11010),
shown separate.
|
||
|
|
||||
|
Wireless Remote Control Units
|
|
|
Wireless Remote Control "F" Unit 1
|
Wireless Remote Control "F" Unit 2
|
 |
 |
|
Wireless Remote Control "F" Unit 1, |

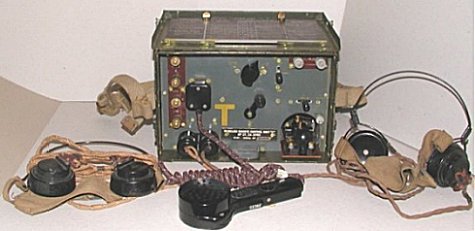

Wireless Remote Control "F" Unit 2,
complete with DLR headphones and No.8 mic. The unit's Morse key can also be seen in the bottom right corner of the case. |
 |
 |
|
Wireless Remote Control "F" Unit 1, internal
view with the 2 1.5 volt X cells for powering the mic circuit. |

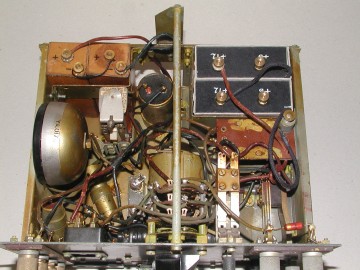

Wireless Remote Control "F" Unit 2,
internal view with the 2 1.5 volt X cells for powering the mic circuit and the 24 volt battery for powering the keying circuits. |
|
|
|
|
Aerial Carry Case No.1
|
||||||
 |
 |
 |
 |
|||
|
Aerial Carry Case No.1 (ZA11011) with Carrying
Strap "H" (YA4080) and Engineer's 8oz hammer.
|
Engineer's 8oz hammer close up, with retaining
straps No.1 (ZA11462) & No.2 (ZA12764).
|

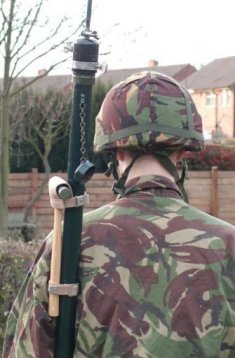

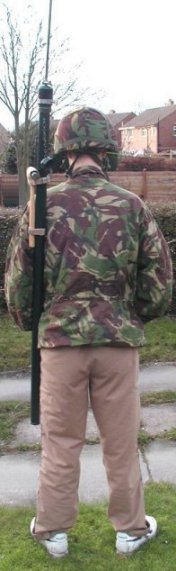

Aerial Carry Case No.1 with Antenna base No.11
(ZA11009) & Spike (ZA11010) & F rod 12 foot antenna connected,
in use.
|
Close up of Antenna base No.11 (ZA11009) with F
rod antenna connected. The Engineer's 8 oz hammer can be seen in its
straps.
|
|||
|
|
||||||
 |

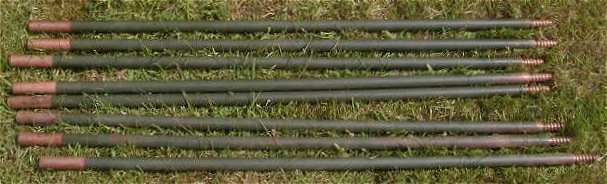

Wire Aerials
|
 |
||
|
Original 1943 "Aerial 100 foot No.5"
with its storage bobbin & insulators, you can just make out the
tuning chart under the wire.
|
Counterpoise used in conjunction with the aerials
for the Wireless Set No.22. Consisting of 4 thick wire radials that
are connected to the ground post of the radio.
|
|||
 |
 |
 |
||
|
Original "Aerial 250 foot No.1" with
storage bobbin & insulators. Frequency range marked on bobbin is
2 Mc - 2.65 Mc.
|
Original "Aerial 185 foot No.1" with
storage bobbin & insulators. Frequency range marked on bobbin is
2.6 Mc - 3.5 Mc.
|
Original "Aerial 150 foot No.2" with
storage bobbin & insulators. Frequency range marked on bobbin is
3.45 Mc - 4.5 Mc.
|
||
 |
 |
 |
||
|
Original "Aerial 110 foot No.1" with
storage bobbin & insulators. Frequency range marked on bobbin is
4.5 Mc - 5.6 Mc.
|
Original "Aerial 90 foot No.1" with storage
bobbin & insulators. Frequency range marked on bobbin is 5.5 Mc
- 6.5 Mc.
|
Original "Aerial 70 foot No.1" with storage
bobbin & insulators. Frequency range marked on bobbin is 6.6 Mc
- 8 Mc.
|
||
|
|
||||
|
Antenna Coupling Equipment, Set
Unit J, ZA 27322
|
||||
 |
 |
 |
||
|

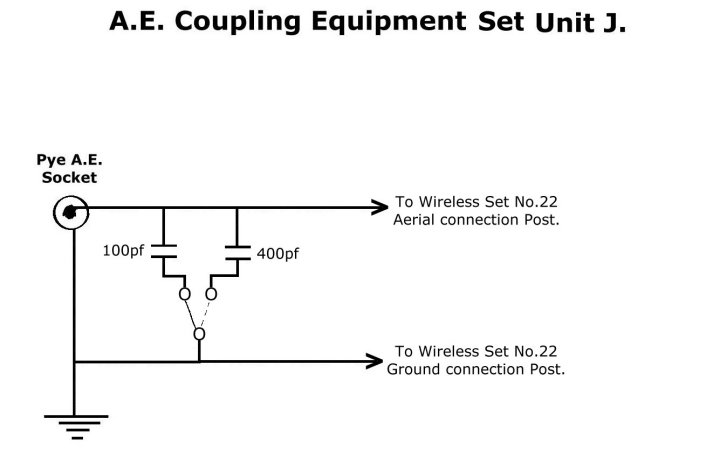

Antenna Coupling Equipment, Set Unit J, ZA 27322.
Close up view showing the Pye coax socket & the frequency range
switch.
|
Antenna Coupling Equipment, Set Unit J, ZA 27322. Used for connecting the WS22 to Aerial Coupling Equipment, Aerial Unit J. |
Inside View of the Antenna Coupling Equipment,
Set Unit J, ZA 27322.
|
 |
|
Instructions on the end of the case on how to use
the Set Unit J.
|
|

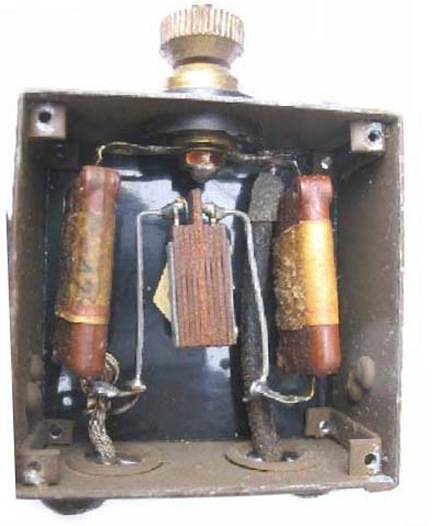

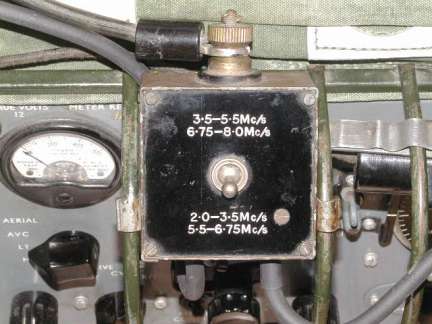

Aerial Coupling Unit No.4, Mk.1
- ZA.10560
|
 |
|

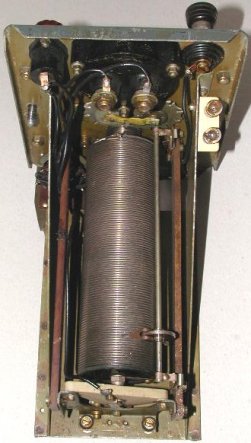

Inside View
|
 |
|

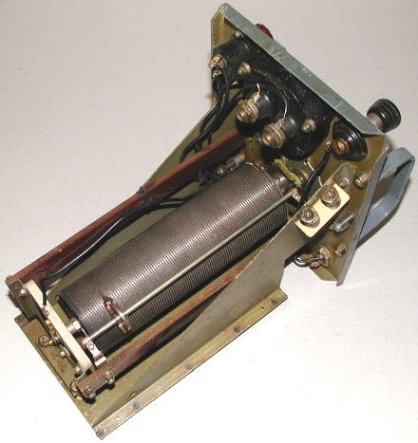

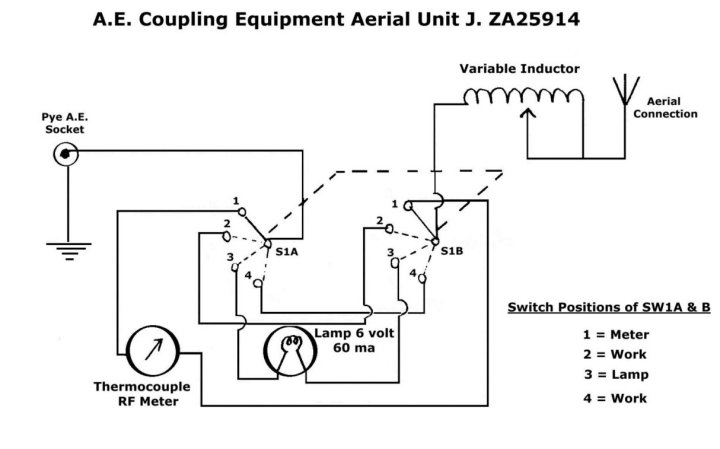

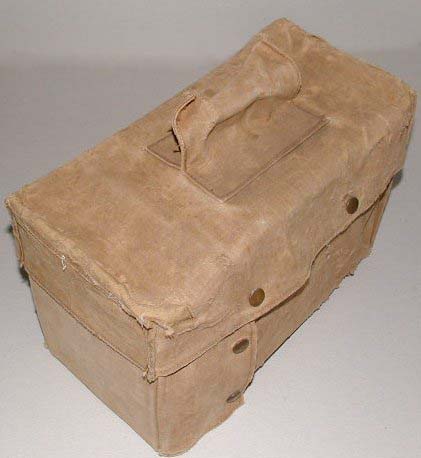

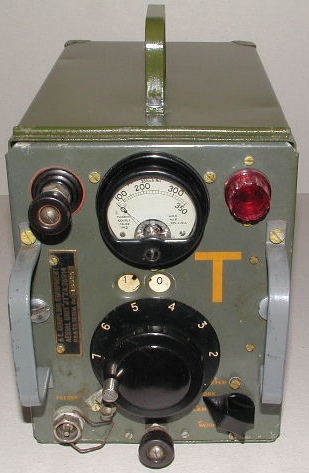

Antenna Coupling Equipment, Aerial Unit J, ZA25914. This is the remote aerial tuner for the Wireless Set No.22. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

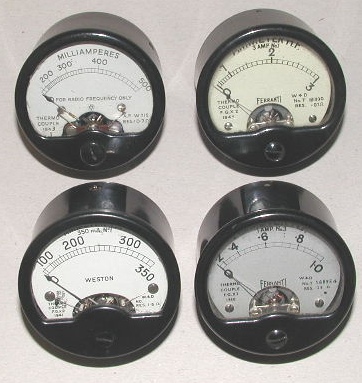

RF Ammeters used in the Aerial Coupling Equipment, Set Unit J,
these are plug in units. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

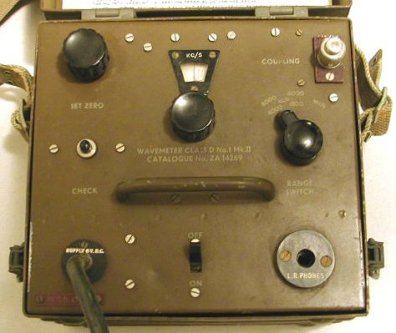

Wave Meter, Class D, No.1 MkII,
ZA-14269
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

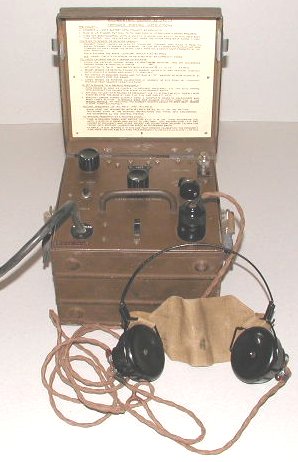

Wave Meter, Class D, No.1 MkII, ZA-14269 Powered from 6 volts this unit was used to pre-set a Wireless Set No.22 to a designated frequency with a degree of accuracy better than just using the tuning dial of the set itself. The Class D Wave Meter can be used to pre-set a transmitter or a receiver to a given frequency within the range of 1.9 M/cs to 8.0 M/Cs |
Wave Meter all set up and in use. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Front view of Wave Meter with the headphones unplugged.
|

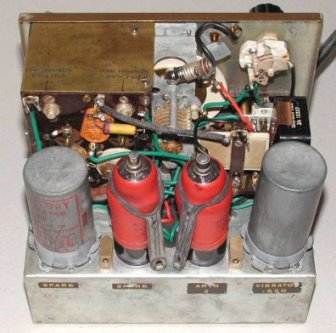

There are a complete set of spares within the Wave Meter. Only one valve and one vibrator pack are used, the other valve and vibrator (on the left of the chassis) being kept as spare. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
All packed up for carrying. |
This photo shows the HT power supply on the underside of the chassis. The power supply generates the high voltage by using a 6 volt non-synchronous vibrator to energise a transformer which steps up the voltage from 6 volts to 140 volts, a Selenium rectifier then converts the 140v AC to DC. The DC is then smoothed and filtered and used to power the single valve used in the Wave Meter. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Click HERE
to see the article published about the longest distance contact ever
recorded using a Wireless Set No.22 to a Wireless Set No.19.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
