Frequency Meter BC-221-AK

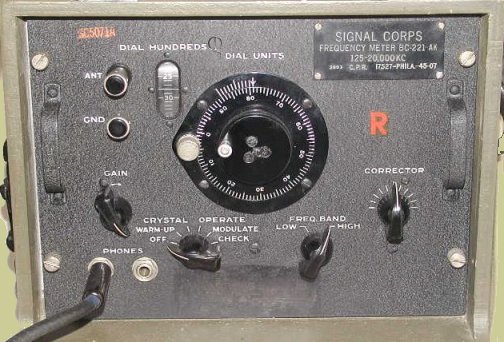

BC-221-AK, set up and running with the HS-30 headphones plugged in.

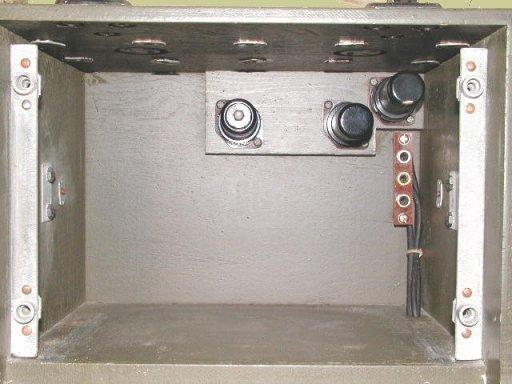

Valve spares inside the case, shown here with the chassis removed.

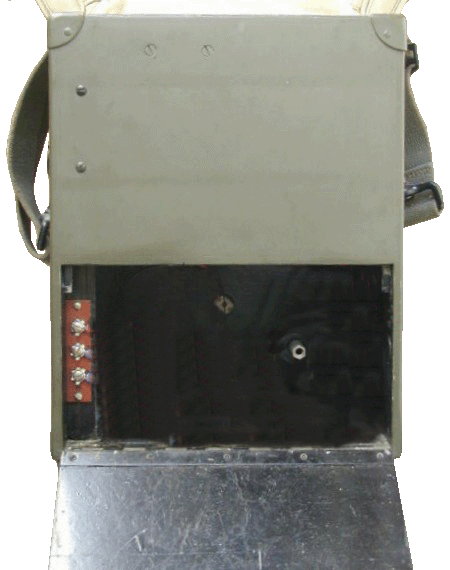

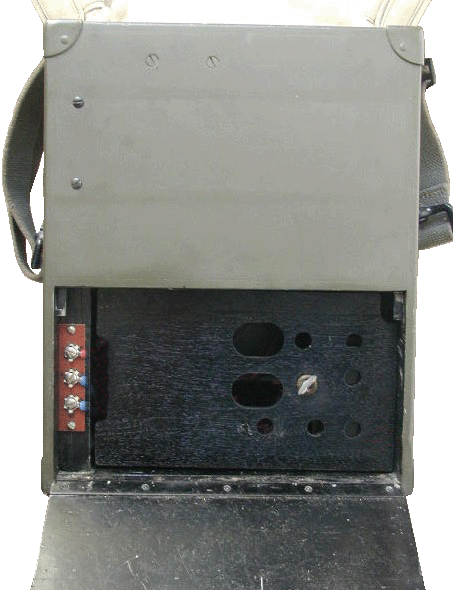

The 3 connections at the back on the right, are for the power from the batteries to the chassis.






You can see the 3 pin power connector that mates with
the 3 pin socket inside the case in the photo above.

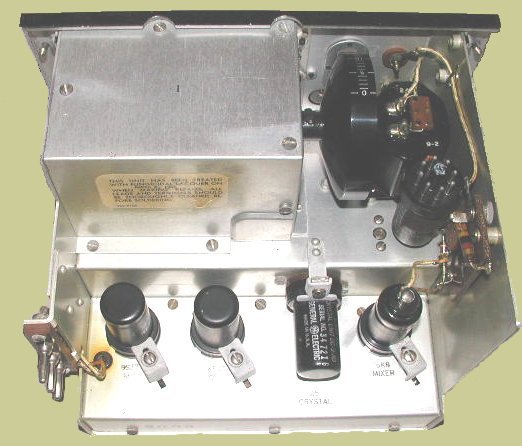

Spare 1 MHz crystal can be seen clipped to the right side
of the chassis, you can see the octal base pins sticking up.

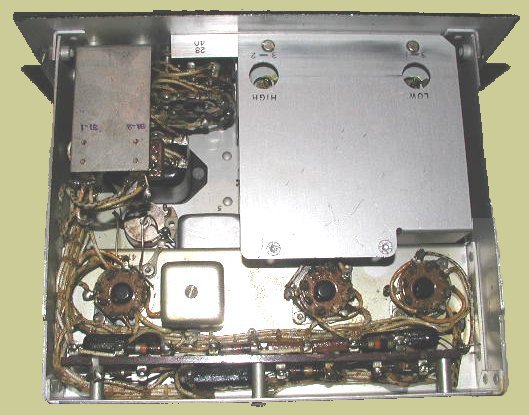

Under side view of BC-221-AK
Label from inside BC-221-AK showing its last date of being treated with Fungicidal Lacquer, showing this BC-221-AK to be W.W.II vintage!


There is also an inverter unit that was built by Keith Watt that powers the BC-221 from the 6 volt LT supply without any modifications to the BC-221 what so ever, click here to see the article.

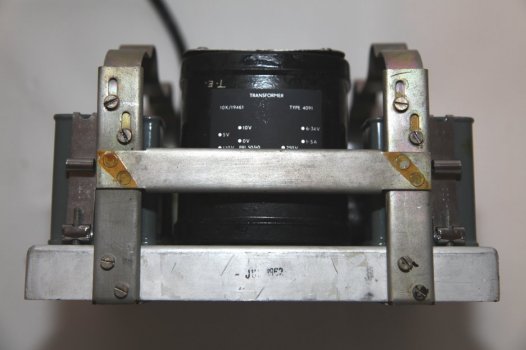

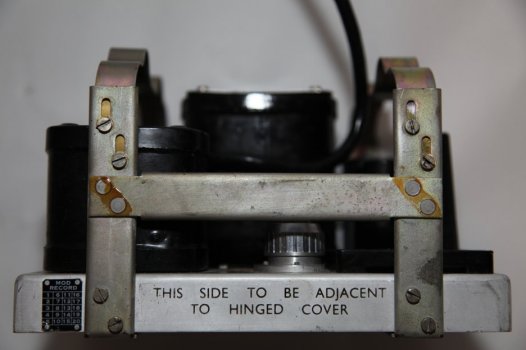

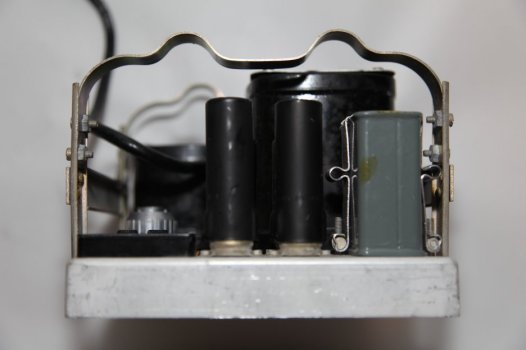

Original BC-221 A/C PSU

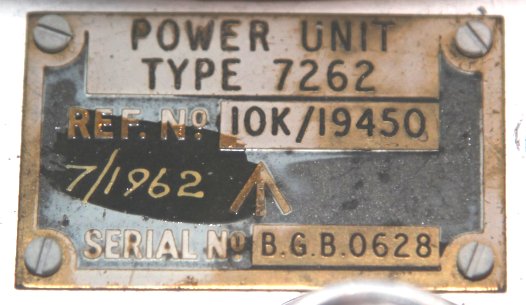

Power Unit Type 7262

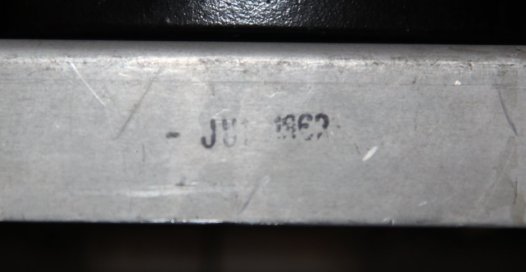

July 1962

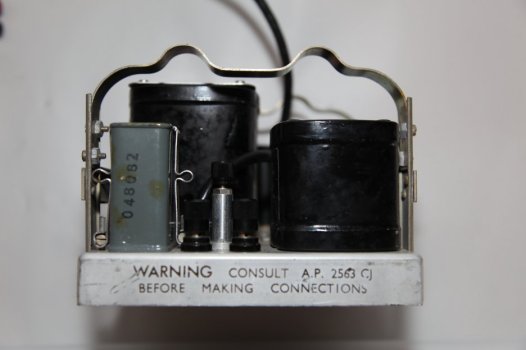

Terminals to connect HT/LT and GND to BC-221
Terminals from above

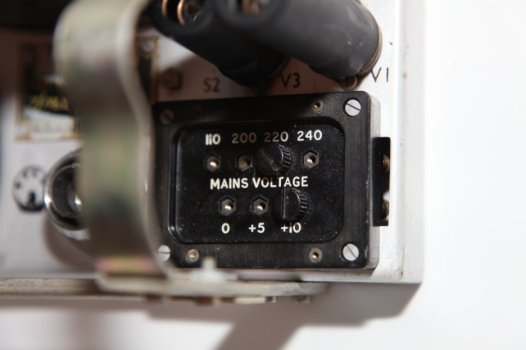

Input voltage selector, 110v, 200v, 220v and 240v
with 0, +5 and +10 steps between.

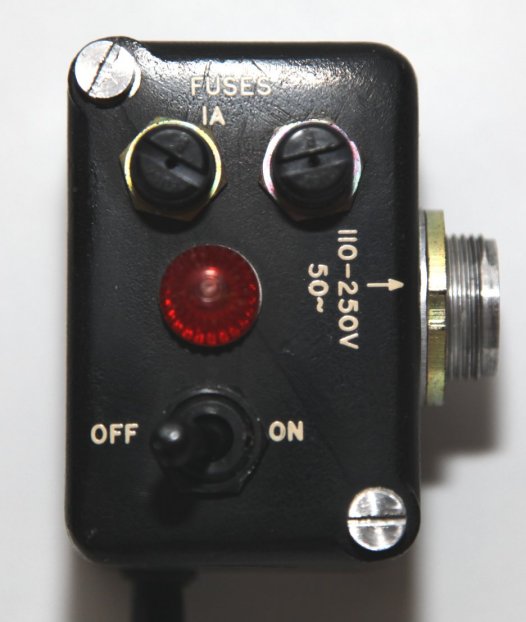

Control box for PSU with AC input conenctor on the right of the picture.
Line and Neutral are both fused. Plus the ON/OFF toggle switch.

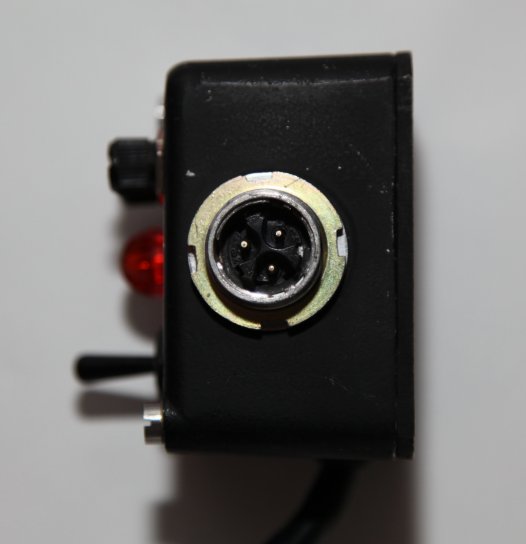

Close up of the A/C input connector
