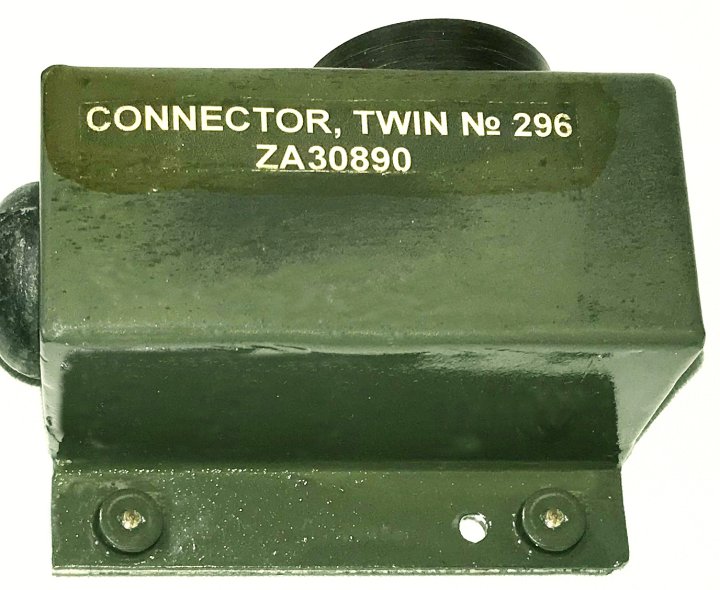

CONNECTOR, TWIN № 296, ZA30890

Taken from W.O. 1758 Wireless Set No53/R209;

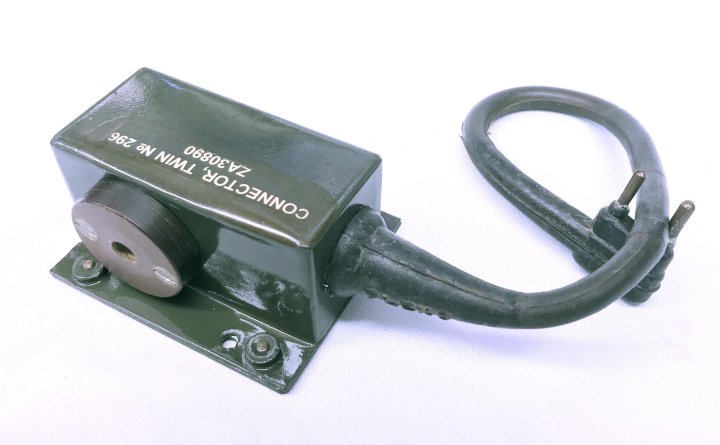

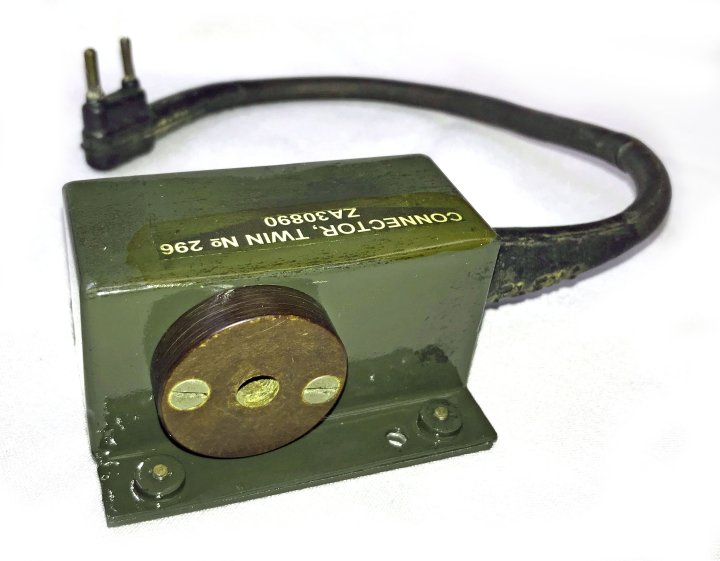

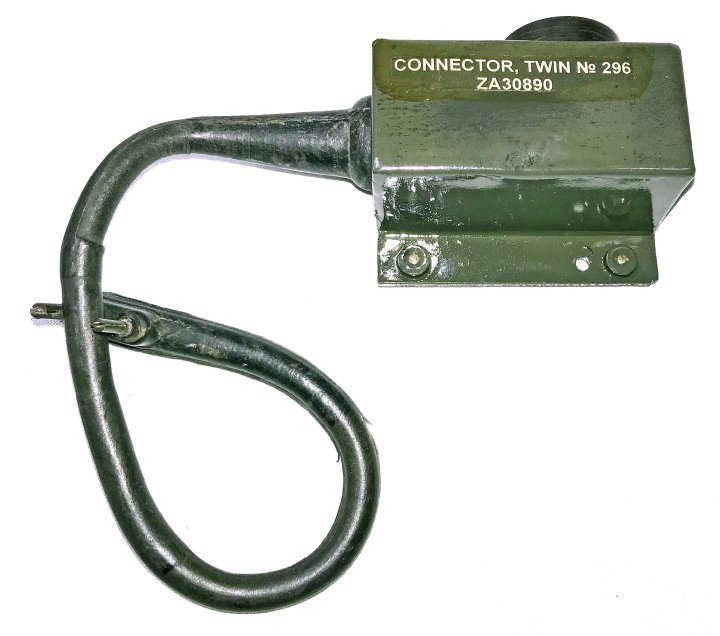

(a) Adaptor for Phone Plug (H.2)
Connects remote control unit H.2 to the remote R.209 (Used on Ground Installation Only.)
(b) Not required for Lorry Command Installation.
(c) One only required for Lorry Wireless Installation.
Provides interchangeability for other type headphones to be used with R.209.

The adaptor esentially allows 1/4 inch jack headphones to be used with an R209 without modifying the R209.

adaptor

adaptor

adaptor

adaptor

1607
Wireless Set No 53/R209 Wireless Stations No 53 in Lorry 3-Ton 4x4 Command (HP), Lorry 3-Ton 4x4 Wireless (HP) or Ground Station (HP), Conversion from R107 (or R107T) to R209, WO1758, Reprinted Aug 1953
